How to use MST 90+ auto Voltage Regulator Stabilizer?

The car ECU is so easy to be damaged once the battery voltage is unstable while you doing the ECU programming for your car. So it is necessary to protect the ECU safety absolutely. MST 90+ universal Auto Voltage Stabilizer is a good choice.

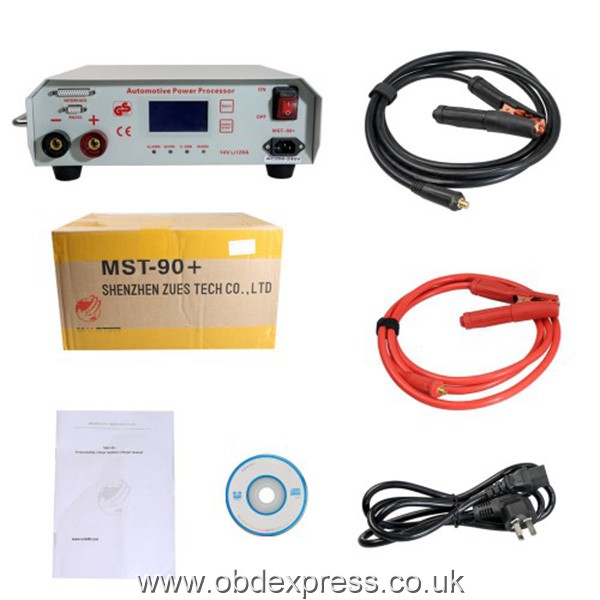

MST 90+ auto Voltage Regulator Stabilizer 1

What can MST 90+ universal Auto Voltage Stabilizer do?

It can input voltage 220V only, output voltage 14V/120A with extensive protection for Volvo, Porsche, VW, AUDI, BMW, Mercedes, and general motors, etc.



Main functions:

-Smart vehicle program

-Charging dedicated power

-High-temperature alarm

-Intelligent charger for motor vehicles starter battery

-Short circuit and reverse polarity protection

-Extensive protection functions and self-protection functions



 Protection Features:

-Overload: 90-110% of rated output power

-Output voltage/ A: 14V /120A

-Working temperature: -40°C±85°C

-Safety: UL60950, TUV EN60950-1

-Withstand voltage: I / P-O / P: 3KVAC I / P-FG: 1.5KVAC

-Insulation resistance: I / PO / P, I / P-FG: 100M Ohms, 500VDC/25 C / 70% RH

-EMC: Complies with EN55022, EN61000



Input Characteristics:

-input voltage: AC220V±15%, or AC110V±15%

-Frequency range: 40-60HZ

-Power Factor: 0.95

-Efficiency: 85%



 Output Characteristics:

-DC voltage: 14.5V

-Rated current: 0-100A

-Rated maximum power: 1500W

-Ripple and noise: 100mVp-p

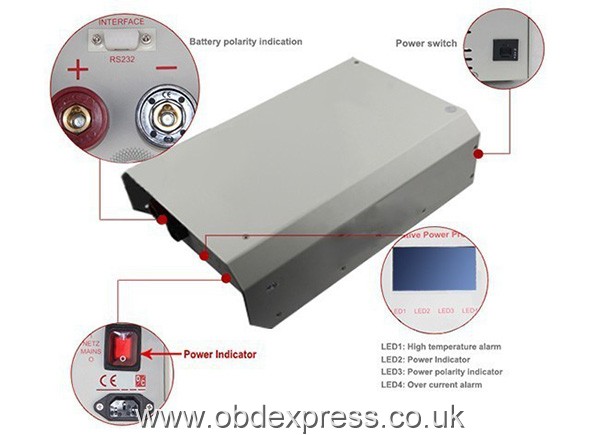

MST-90 Auto Voltage Regulator stabilizer display:

MST 90+ auto Voltage Regulator Stabilizer 1

MST 90+ auto Voltage Regulator Stabilizer 2




 MST 90+ auto Voltage Regulator Stabilizer 3

How to use MST 90+ auto Voltage Regulator Stabilizer?

The black line is connected to the negative pole

The red line is connected to the positive pole

MST 90+ auto Voltage Regulator Stabilizer 4



Connect the charger power supply input line and battery charging line,

Turn on the power supply

The four indicator lights (ALARM, WORK, C-ERR, WARN) under the MST 90+ will flash at the same time once then go out together.MST 90+ auto Voltage Regulator Stabilizer 5

MST 90+ auto Voltage Regulator Stabilizer 6



If the MST-90 device does not detect the battery or the connection is incorrect, it means there is no voltage output.

For this situation, you should connect it to the battery (or press the FORCE START button).

When the [WORK] indicator light is on, it means the MST 90+ works normally.

MST 90+ auto Voltage Regulator Stabilizer 7

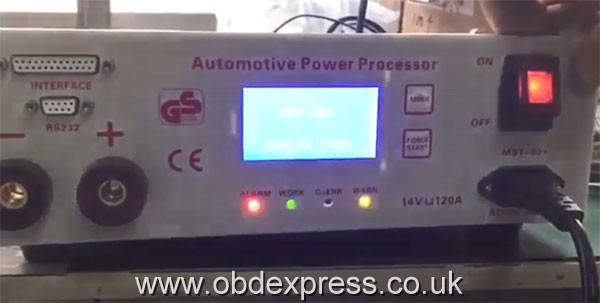

Turn off the power at the same time, the ALARM and WARN indicator light will be on with the sound di di di.

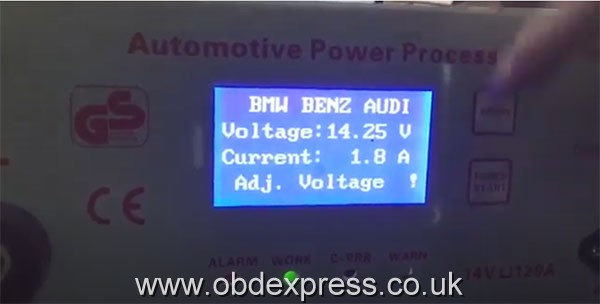

The output voltage is adjusted by the long press [MODE] button for 3 seconds.

Press the [FORCE START] button to increase the voltage

Press the [MODE] button to reduce the voltage

When the adjustment is completed, press the [MODE] button for 3 seconds, and it will exit the voltage regulation.


MST 90+ auto Voltage Regulator Stabilizer 8


Using tips:

  1. Please use 10A or above of the power supply socket connected to the MST 90+ equipment. Please abide by the general rules of the safe use of electricity. A power supply socket with a ground wire must be used.

2. Verify that the connection between the positive and negative poles is correct when connecting the clip cable to the battery or vehicle.

  1. After charging the wire into the connector, please tighten the right and ensure that the connection is reliable and then turn on the power switch.
  2. The machine has high pressure, non-professionals do not operate, so as not to shock.

5. This charger is only suitable for 12V lead-acid battery charging.



MST-90+ Voltage Regulator Stabilizer Use for ECU and ICOM Programming Dedicated Power supply 14V/100A:

https://www.obdiitool.co.uk/wholesale/mst-90-voltage-regulator-stabilizer.html
